INLANE 300
FRONT OFFICE SOLUTION

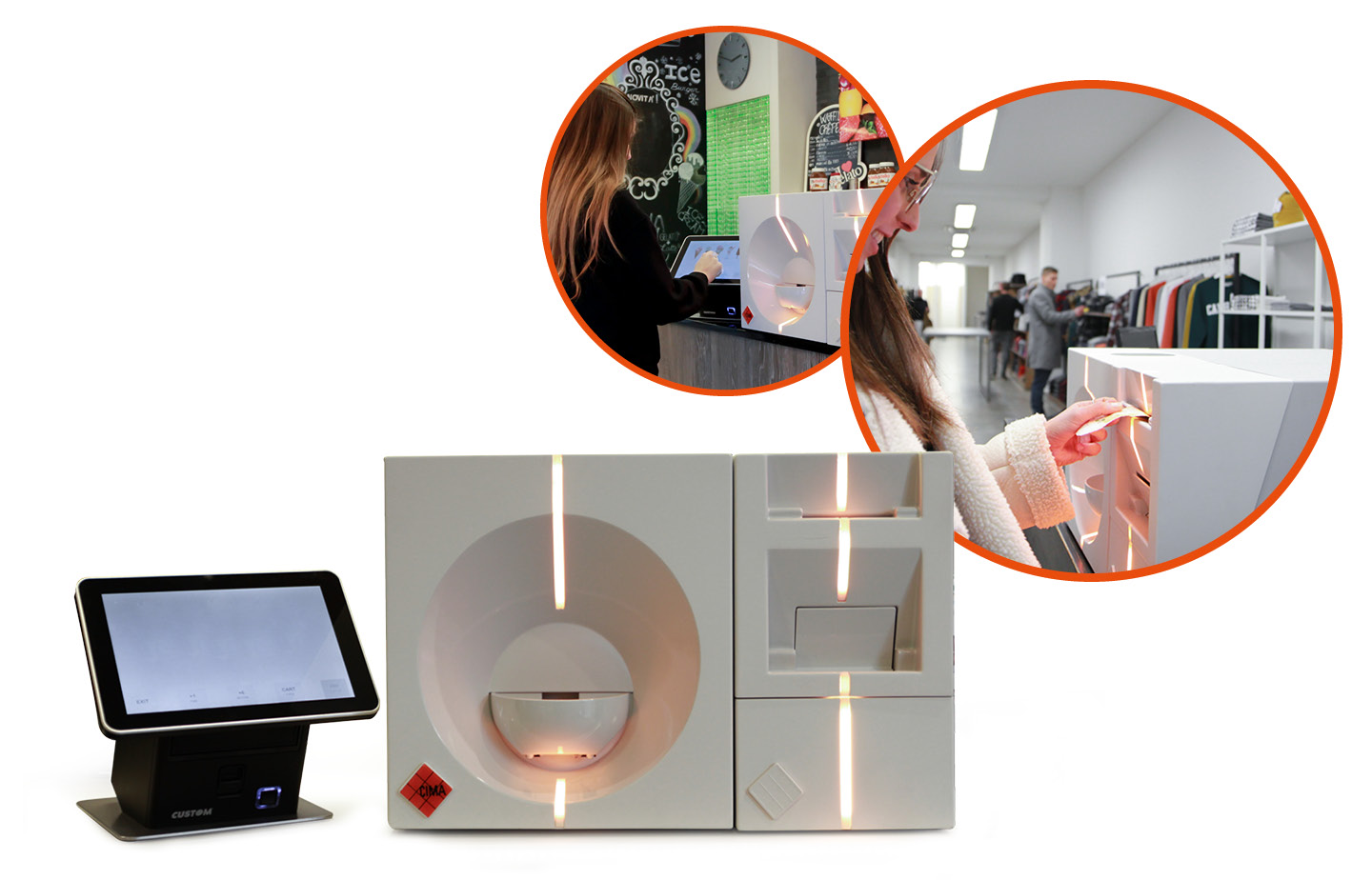

INLANE 300: small front office solution.
InLane is the CIMA solution tor front-end automated cash desk. This modular line has a compact and elegant design, and consists of InLane 300, InLane 300 depo, InLane Kiosk.
InLane 300 allows the automation of cash handling at the checkout point and it can be configured both as self-checkout (the client picks the products and the proceed to the payment by inserting the notes and/or coins and receiving back any change) and as a device for the store staff (in this case, the process is carri ed out by the operator and the client directly inserts and/or withdraws the coins/notes).
In both cases, the operator does not touch the cash, therefore the device is perfectly suitable for those stores where a high level of hygiene is required [bakeries, butcheries, C-stores, bars … ).
DEPLIANT
IN THE FRONT LINE WITHOUT RISKS
• Automated cash handling
• Elimination of the risk of errors or shortages
• Increased staff productivity / time recovery
• Increased customer satisfaction
• Hygiene and safety:the sto re staff does not touch the cash
• Easy to combine with the store design
• Cutting-edge validator
• User-friendly
• High recycling capacity
• Connection with CIT companies
• CIMA’s back-office software integration
NOTES
• Total capa city 3 RSM x 100 notes each and 350 notes capacity in the cassette
• Acceptance speed: 2 notes/sec
• Withd rawal speed: 3 notes/sec
• Input slot capacity: 15 notes in bundle
• Output slot capa city: 1 O notes in bundle
• Total number of RSMs: 3
• RSM configurations are configurable
• Multi-currency supported
COINS
• Total capacity: 3310 coins (EUR)
• Inputspeed: 10 coins/sec
• Velocità output: 6 mnt/sec
• Hopper: up to8
• Standard coin configuration:
730×0,01 €; 650×0,02 €; 420×0,05 €; 500×0,10 €; 320×0,20 €; 220×0,50 €; 270×1 €; 200×2 €
• Hoppers configuration can’t be changed
• Other currencies are available (the capa city may vary)
FEATURES
• “Follow me” LED sign
• Shutter on the in/outlet
• Notes withdrawal and coin withdrawal through separate slots
• Coin module able to detect foreign items
• Pull-out Coin module
• Manageable through C-link platform
POWERSOURCE
• Voltage: 1 OOV-240V
• Frequency: 50Hz-60Hz
INTERFACE
• 1 Ethernet Access
INLANE 300
InLane is the CIMA solution tor front-end automated cash desk. This modular line has a compact and elegant design, and consists of InLane 300 Depo, InLane 300, InLane Kiosk.
SENSOR BV1000
BV1000 is a bill validator with authenticity detection. It was born in 2017 and is fruit of CIMA R&D team. It complies with the regulations of the main National Banks (Euro currency included) and the templates for many non-European currencies are available. The BV1000 is a full-image sensor, that combines the most advanced technologies on the market: magnetic, infrared, ultraviolet, visible light.
