INLANE 300 DEPO
FRONT OFFICE SOLUTION

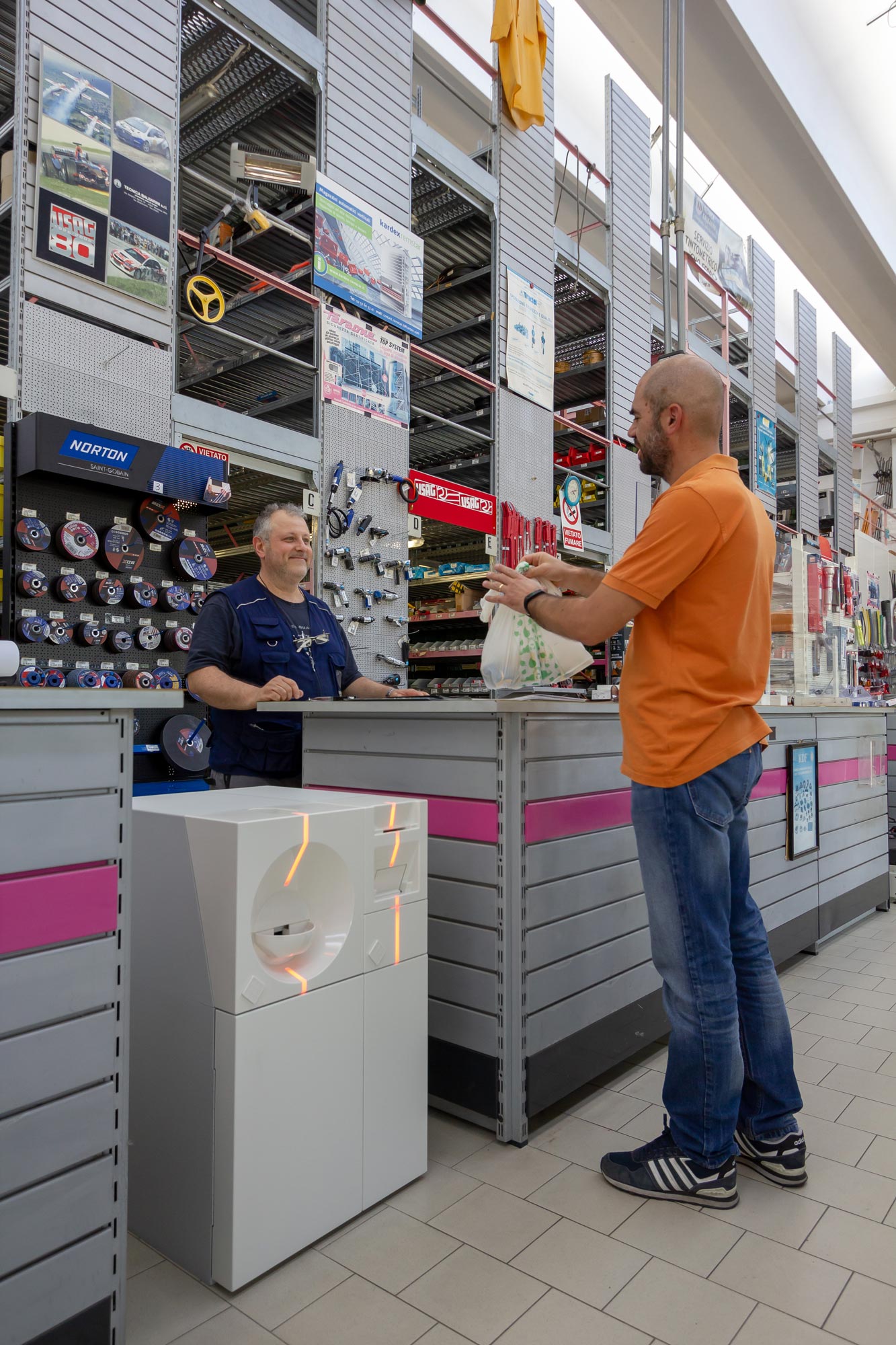

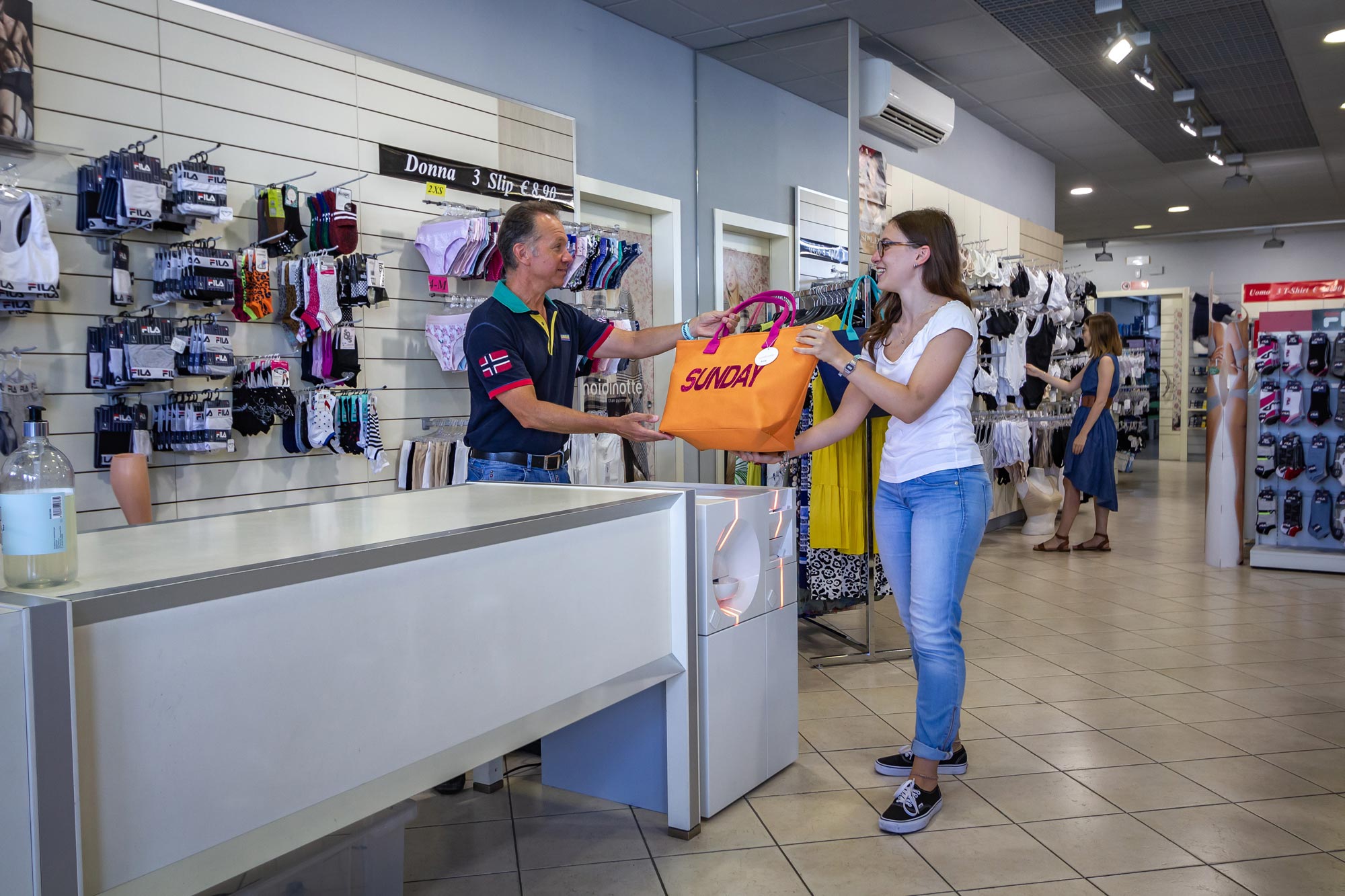

INLANE 300 DEPO: front office solution.

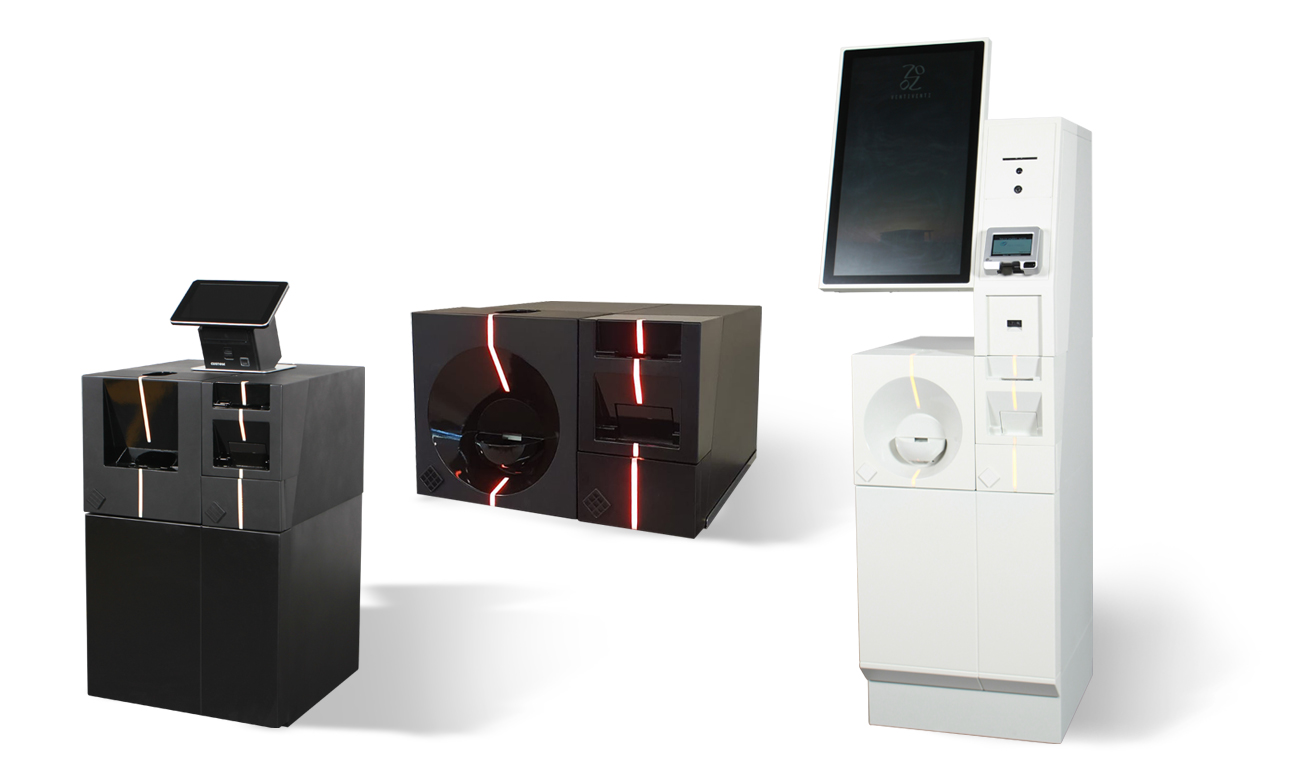

lnLane is a CIMA solution tor front-end automated cash desk. This modular line has a compact and elegant design, and consists of InLane 300, InLane 300 depo, InLane Kiosk.

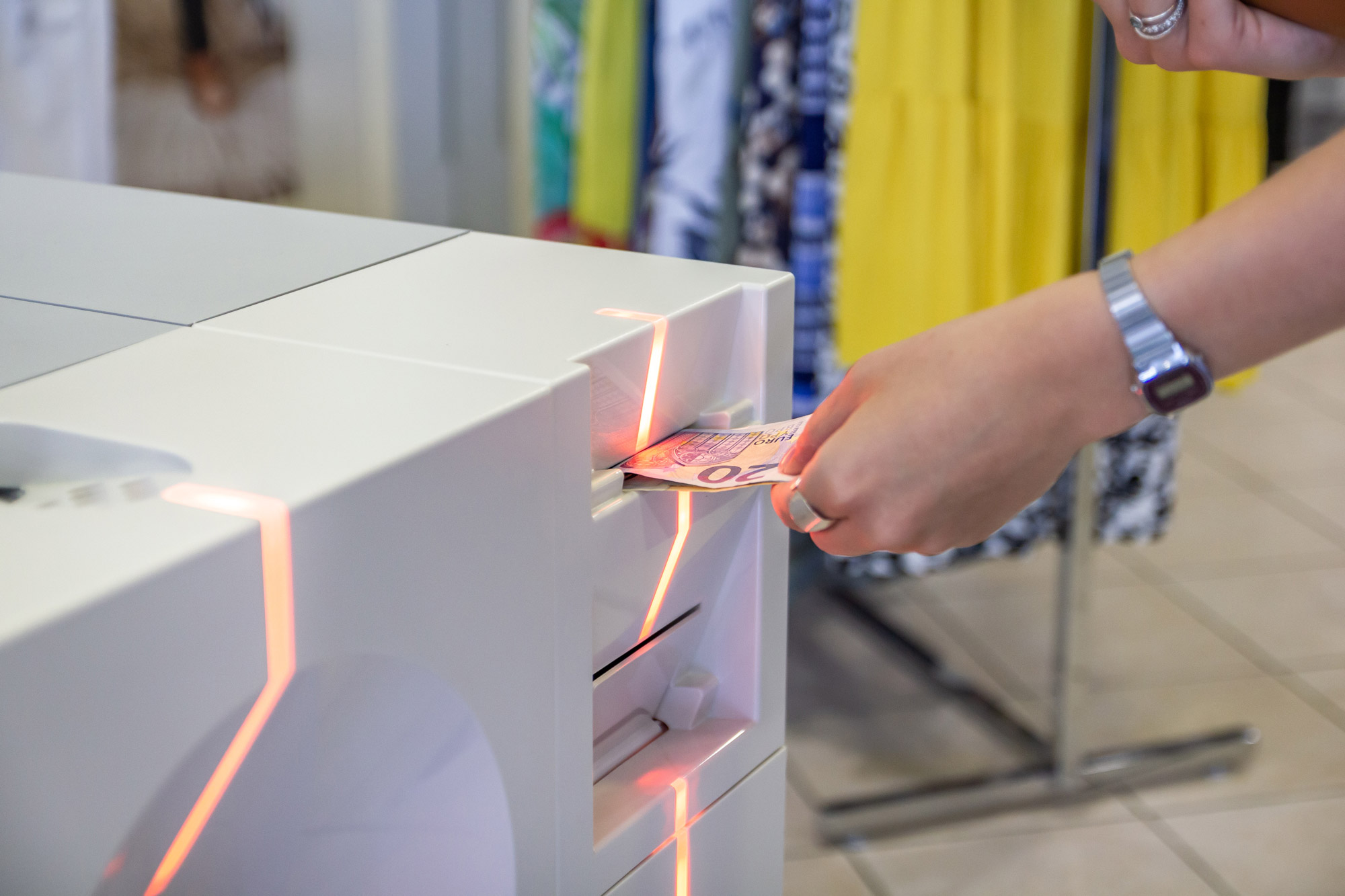

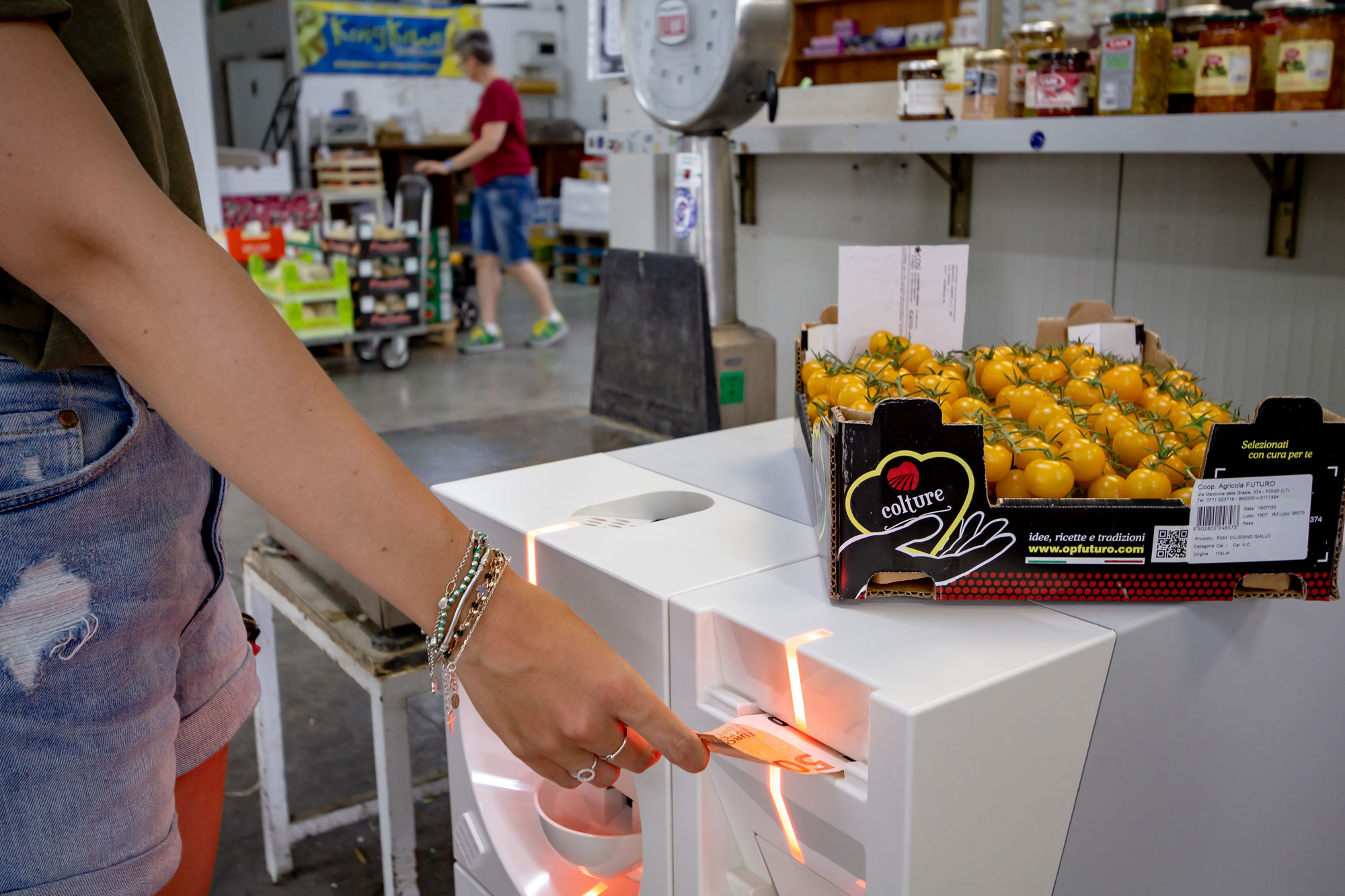

lnLane 300 DEPO accepts, authenticate and stores banknotes and coins very rapidly. lt features 3 RSM with a capa city up to 100 notes each, 8 coin hoppers and an overflow cassette up to 350 banknotes.

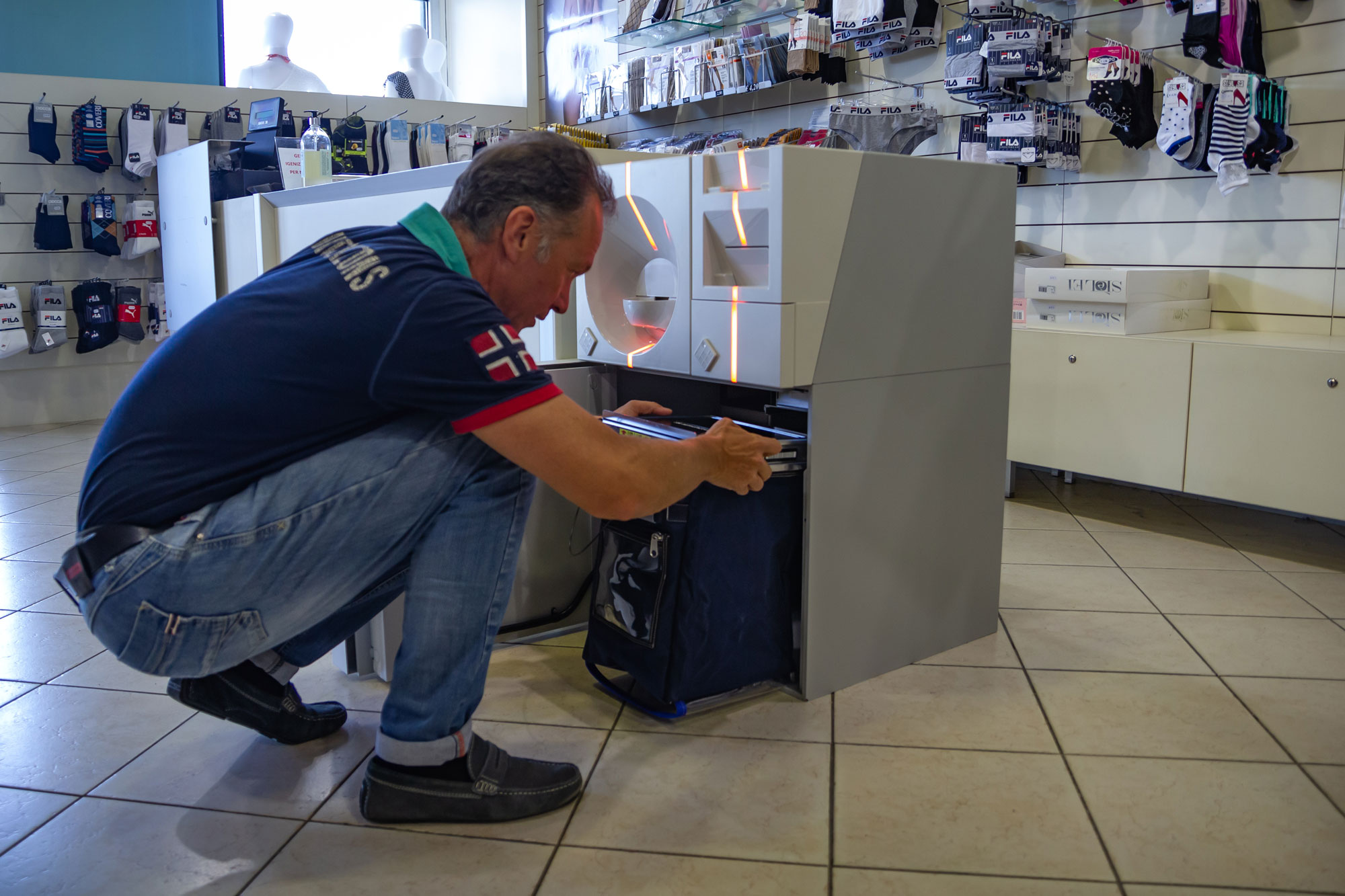

lnLane300 DEPO combines the features of the InLane300 with an 8mm safe that allows the storage of 1,500 additional notes into a bag placed in the device safe, and up to 18 kg of coins into a second bag. Both bags can be collected by the CIT. Thanks to the high storage capacity, it adapts to any market needs, from small store size to supermarket & hypermarkets.
lnLane300 DEPO can be connected via software to CIMA’s back office devices.
DEPLIANT
IN THE FRONT LINE WITHOUT RISKS
• Automated cash handling
• Elimination of the risk of errors or shortages
• Increased productivity due to time recovery
• Increased customer satisfaction
• Maximum hygiene: the staff does not touch the cash
• Easy to combine with the sto re design
• High-level recognition validator
• User-friendly
• High recycling capacity
• Connection with CIT companies
• Easy to integrate with every cash management system
• Controlled remotely
• CIMA’s back-office software integrati on
NOTES
• Total capacity 3 RSM x 100 notes each, 350 notes capacity in the cassette and 1,500 in the canvas bag
• Acceptance speed: 2 notes/sec
• Withdrawal speed: 3 notes/sec
• lnlet capacity: 15 notes in bundle
• Outlet capacity: 10 notes in bundle
• Total number of RSMs: 3
• RSM configurations are configurable
• Multi-currency supported
COINS
• Total capacity: 3310 coins (EUR) and 18 Kgs in the canvas bag
• Input speed: 1O coins/sec
• Output speed: 6 coins/sec
• Hopper: up to 8
• Standard coin configuration:
730×0,01€; 650×0,02€; 420×0,05€; 500×0, 10€; 320×0,20€; 220×0,50€; 270×1€; 200×2€
• Hoppers configuration can’t be changed
• Other currencies available (the capacity may vary)
FEATURES
•”Follow me” LED sign
• Shutter on the in/outlets

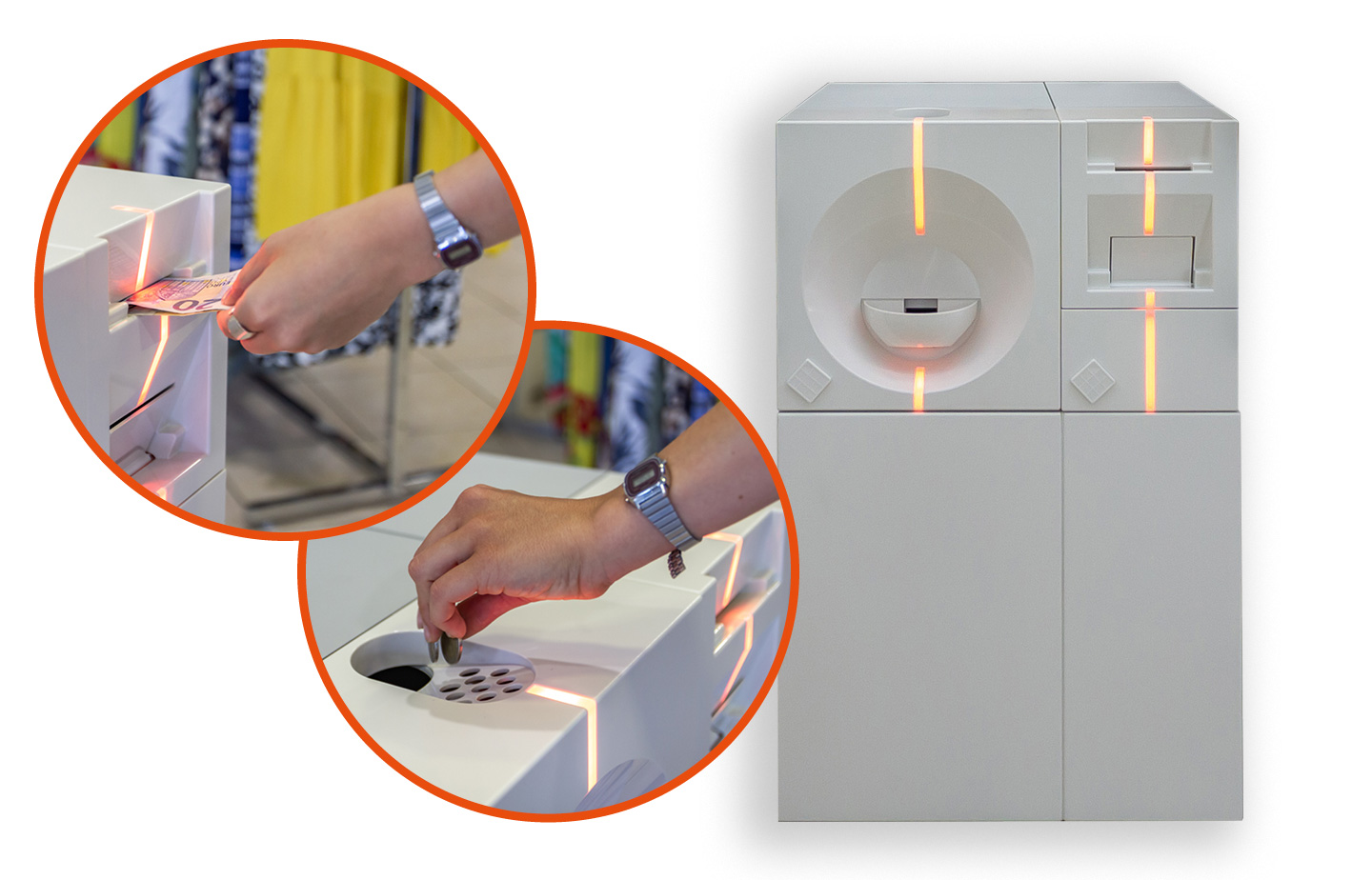

• Notes withdrawal and coin withdrawal through separate slots
• Coin module able to detect foreign items able to detect foreign items
• Manageable through C-link software platform
POWERSOURCE
• Voltage: 1 OOV-240V AC
• Frequency: 50Hz-60Hz
INTERFACE
• 1 ethernet access
INLANE 300 DEPO
InLane is a CIMA solution tor front-end automated cash desk. This modular line has a compact and elegant design, and consists of InLane 300 Depo, InLane 300, InLane Kiosk.

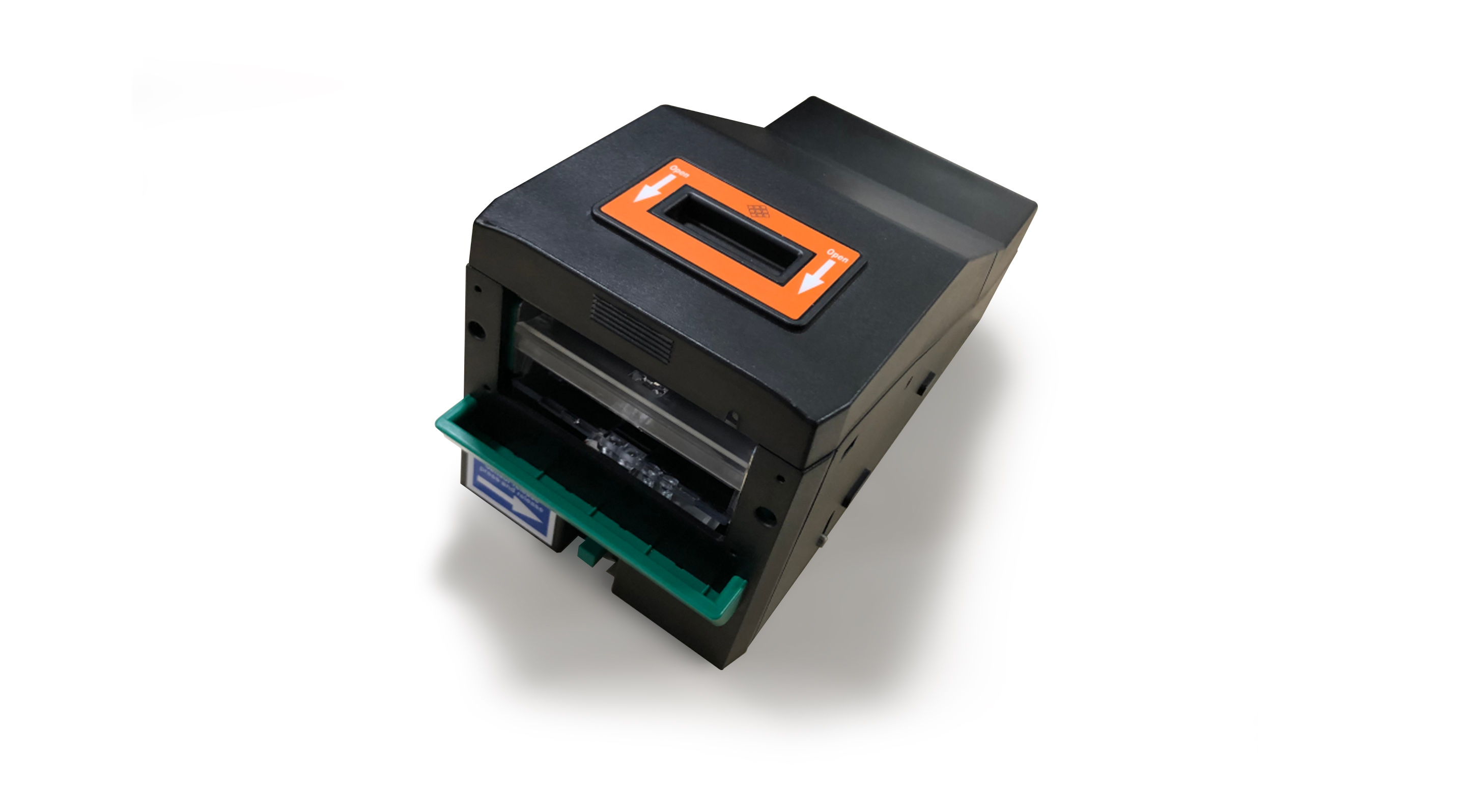

SENSOR BV1000
BV1000 is a bill validator with authenticity detection. It was born in 2017 and is fruit of CIMA R&D team. It complies with the regulations of the main National Banks (Euro currency included) and the templates for many non-European currencies are available. The BV1000 is a full-image sensor, that combines the most advanced technologies on the market: magnetic, infrared, ultraviolet, visible light.
